Autres composants structurels personnalisés
En plus des produits standards, nous pouvons personnaliser différents types de composants structurels céramiques selon les besoins des clients, y compris des géométries complexes, un contrôle extrême des tolérances et des combinaisons de matériaux spéciaux, afin de répondre aux besoins de l’aérospatiale, des semi-conducteurs, des équipements médicaux et d’autres industries exigeantes.
1. 20 ans d’expérience dans la fabrication de céramique
2. Fourniture directe en usine avec garantie de qualité
3. Production sur mesure disponible
4. Disponible dans divers matériaux céramiques
5. Soutien des assemblages céramique-métal et des services de métallisation
PRODUCTS
We specialize in high-precision ceramic custom processing, providing a variety of complex shapes and special functions of ceramic parts, widely used in machinery, electronics, semiconductors, medical, chemical and other industries.
Our custom parts include:

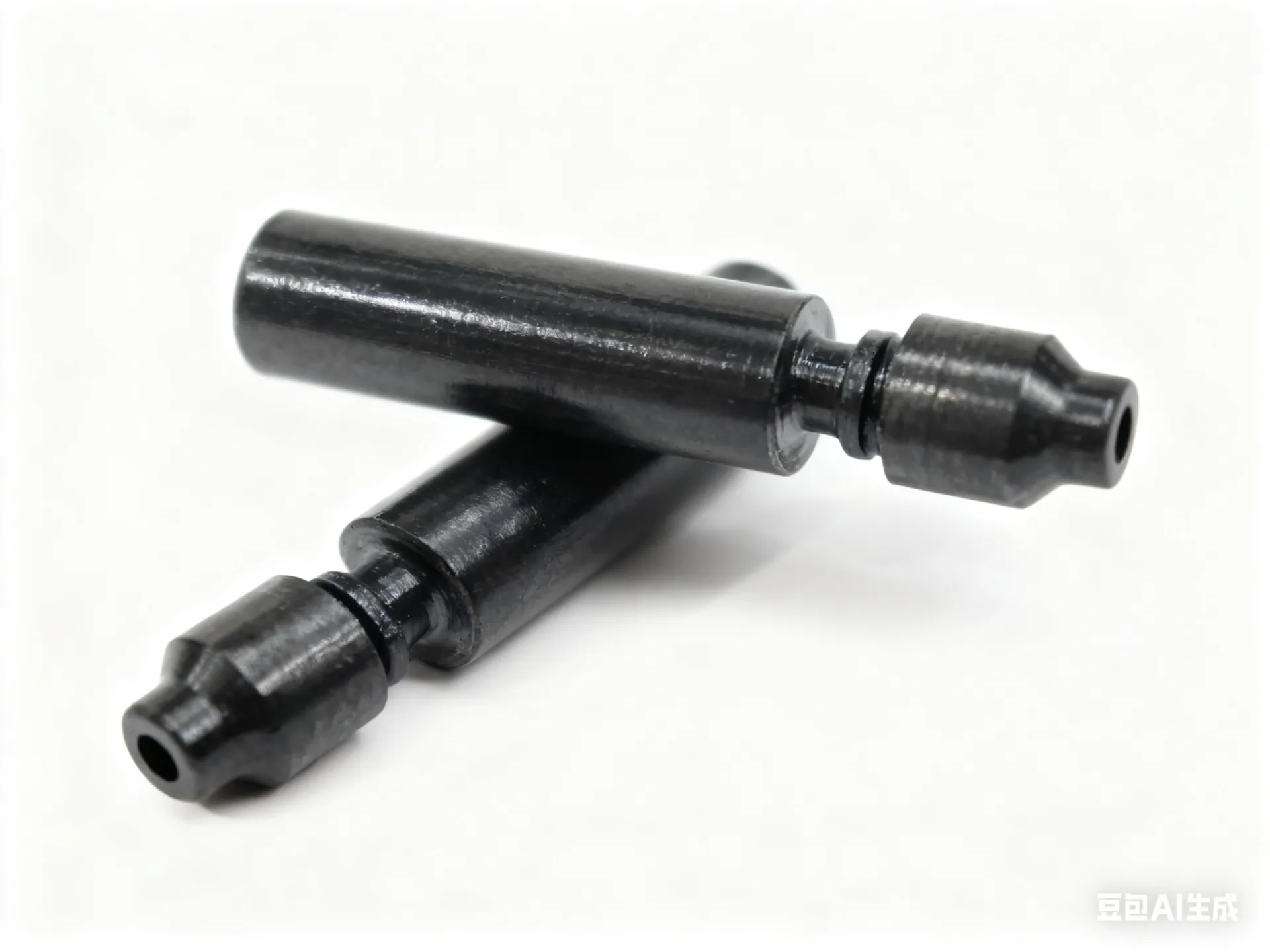

- Bushings and nozzles - wear-resistant and corrosion-resistant, suitable for high-precision fluid control.

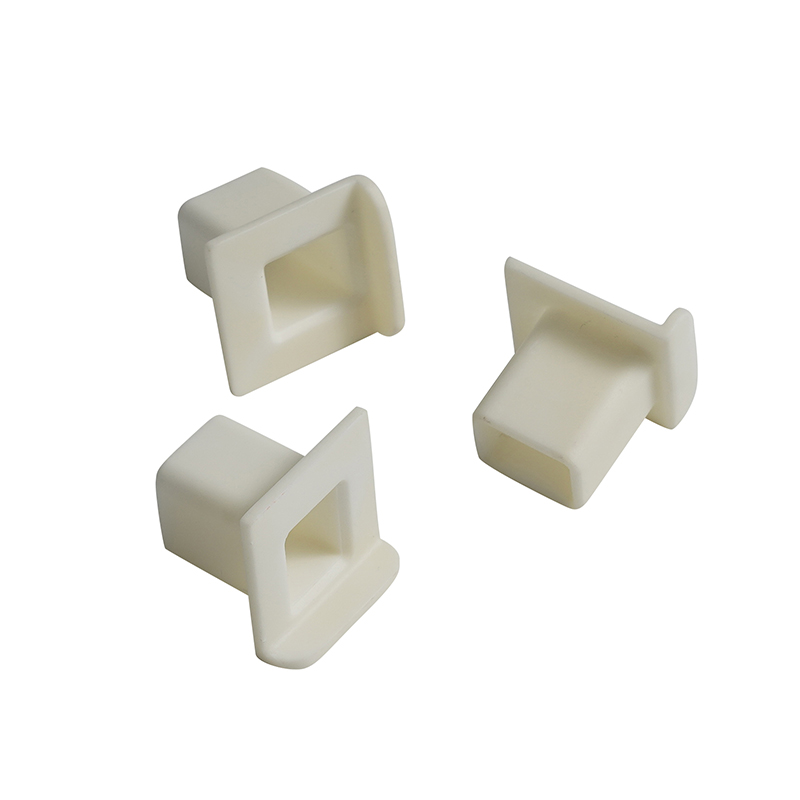

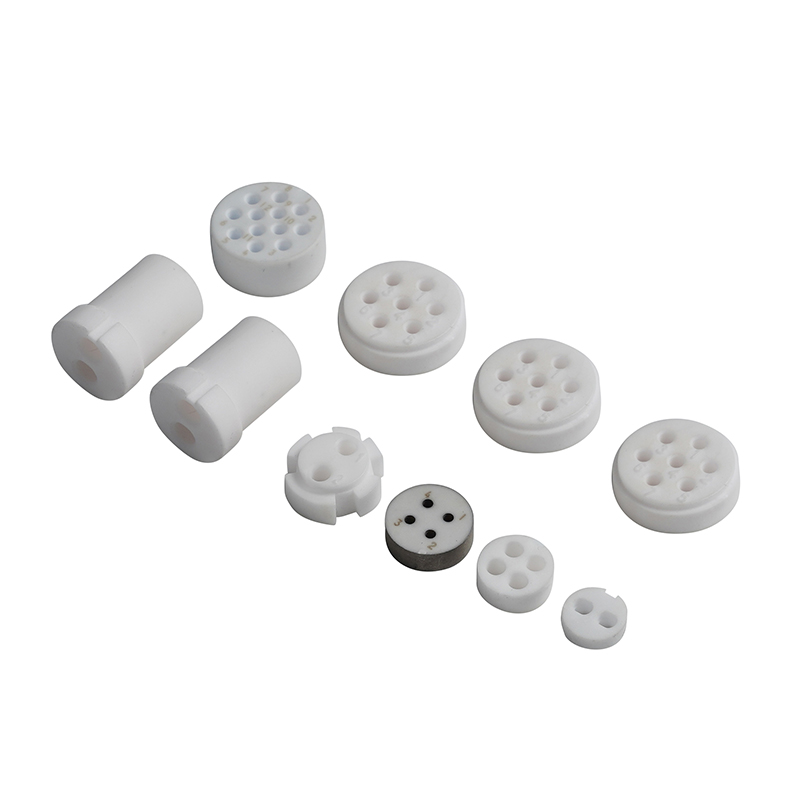

- Square punched holes, metallized - suitable for electronic and electrical insulation applications.

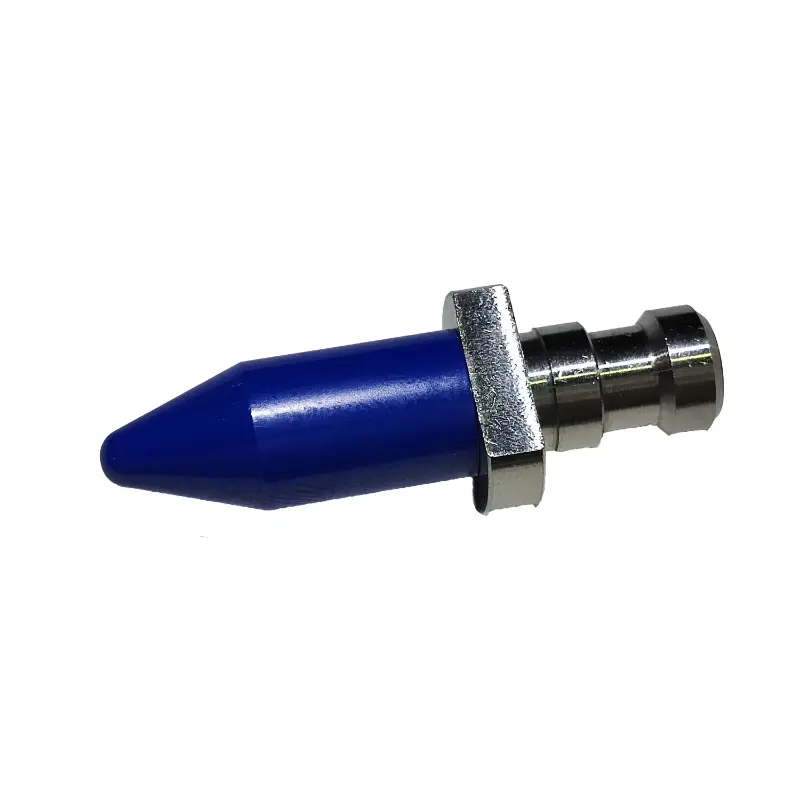

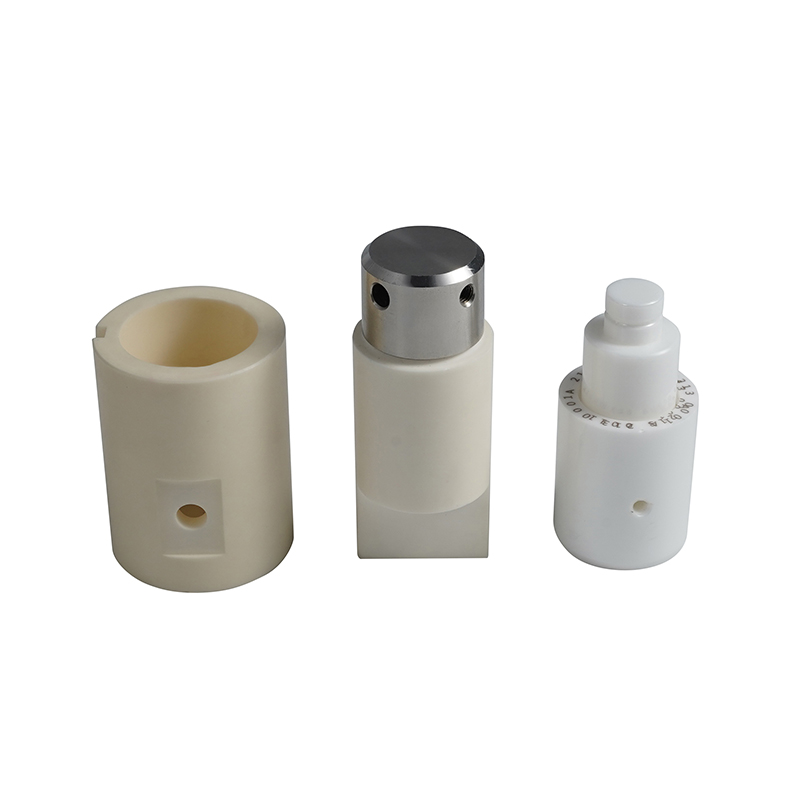

- Engraving and printing, metal bonding parts - achieve a firm bond between ceramics and metal and improve structural strength.

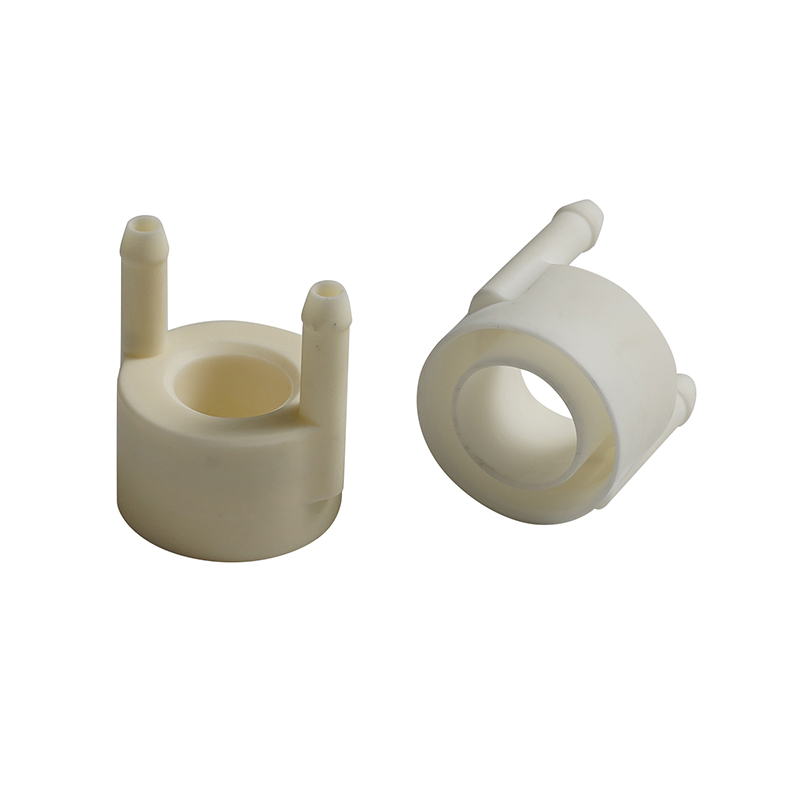

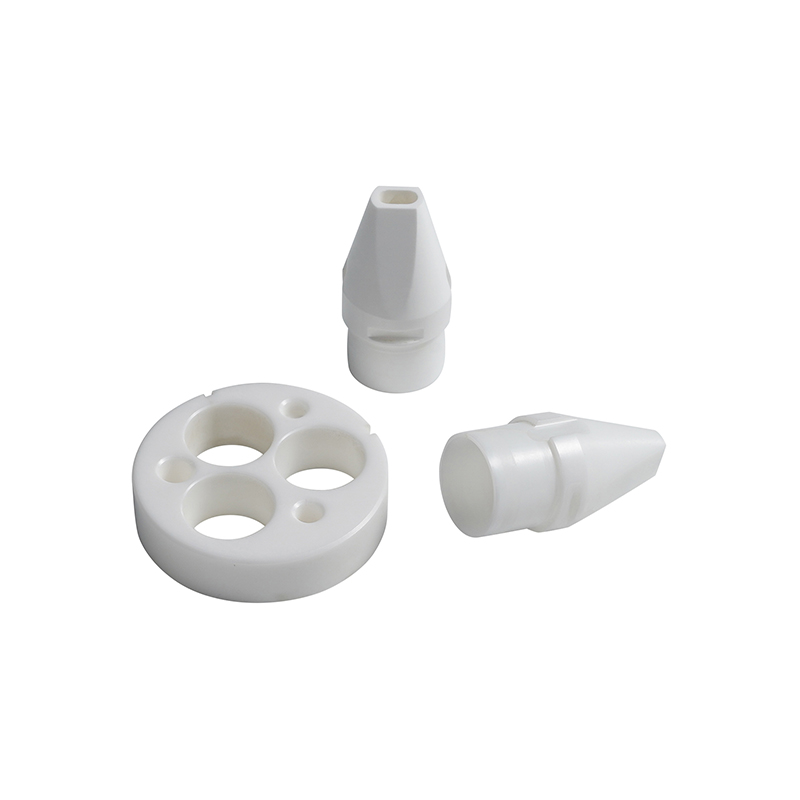

- Special-shaped ceramic parts——according to customer needs, precision processing of various non-standard ceramic structural parts.
We use advanced molding, sintering and precision processing technologies to ensure that our products meet the industry requirements of high wear resistance, high insulation and high precision.
| Size Capability | ||
| Item | Shape | Maximum / Minimum Size |
Length Range |
Tube | ≤1000mm |
| Rod | ≤1000mm | |
| Plate | ≤400×400mm | |
| Custom Shapes | ≤300mm | |
Outer Diameter Range |
Tube | ≤250mm |
| Rod | ≤150mm | |
| plate | ≤400×400mm | |
| Custom Shapes | ≤150mm | |
Inner Diameter Range |
Through Hole | ≤200mm |
| Blind Via | ≤50mm | |
| Step Hole | ≤50mm | |
| Ball Diameter Range | - | ≤100mm |
| Minimum Wall Thickness | - | 0.1 – 0.2mm |
| Drilling-Min. Hole | - | ≥φ0.4mm |
| Thread Diameter | - | ≥M2 |
| Minimum Root Cleaning | - | R0.1mm |
| Processing Precision | |
| Item | Precision |
Outer Diameter Accuracy |
1-25mm: ±0.002mm 20-50mm: ±0.003mm 50-100mm: ±0.050mm 100-150mm: ±0.100mm |
Inner Diameter Accuracy |
0.5-3mm: ±0.001mm 3-10mm: ±0.003mm 10-30mm: ±0.005mm 30-100mm: ±0.030mm 100-150mm: ±0.050mm 150-200mm: ±0.100mm |
| Length /Thickness Precision | ±0.005mm |
| Ball Precision | ±0.002mm |
| Surface Roughness | Ra0.02 – Ra0.2 |
| Geometric Tolerances | |
| Item | Precision |
| Roundness | 0.002mm |
| Concentricity | 0.002mm |
| Straightness | 0.004mm |
| Verticality | 0.005mm |
| Parallelism | 0.003mm |
| Flatness | 0.003mm |
Note: Due to the wide range of indicators, there are correlations between different data. The above data is for reference only. You are welcome to provide specific drawings and requirements. We will evaluate the cost and delivery time for you as soon as possible!
If you have any needs for ceramic products, please do not hesitate to contact us immediately!
